Bio-medical Data Mining with Visual Data Flow

J-D. Fekete, T-N. Do

---oOo---
Dataset
 #Datapoints
 #Dimensions
 #Classes
 Evaluation method
Colon tumor
 62
 2000
 2
 leave-1-out
Ovarian Cancer
 253
 15154
 2
 10-fold
Lung Cancer
 181
 12533
 2
 32 training, 149 testing
Leukemia
 72
 7129
 2
 38 training, 34 testing
Table 1. Dataset description


Visual Data Flow using SVM-1, decision tree algorithm C4.5, Scatterplots, Parallel coordinates deal with
- very large number of dimensions (many thousands)
- users's feedback: optimise parameters, human knowledge
- results: accurate & comprehensibility


1) Colon tumor:
- without feature selection (2000 dims): 6 errors with SVM algorithms
- feature selection with SVM-1: 8 dims
- visualization with scatterplots, parallel coordinates: 4 errors
- classification with decision tree algorithm C4.5

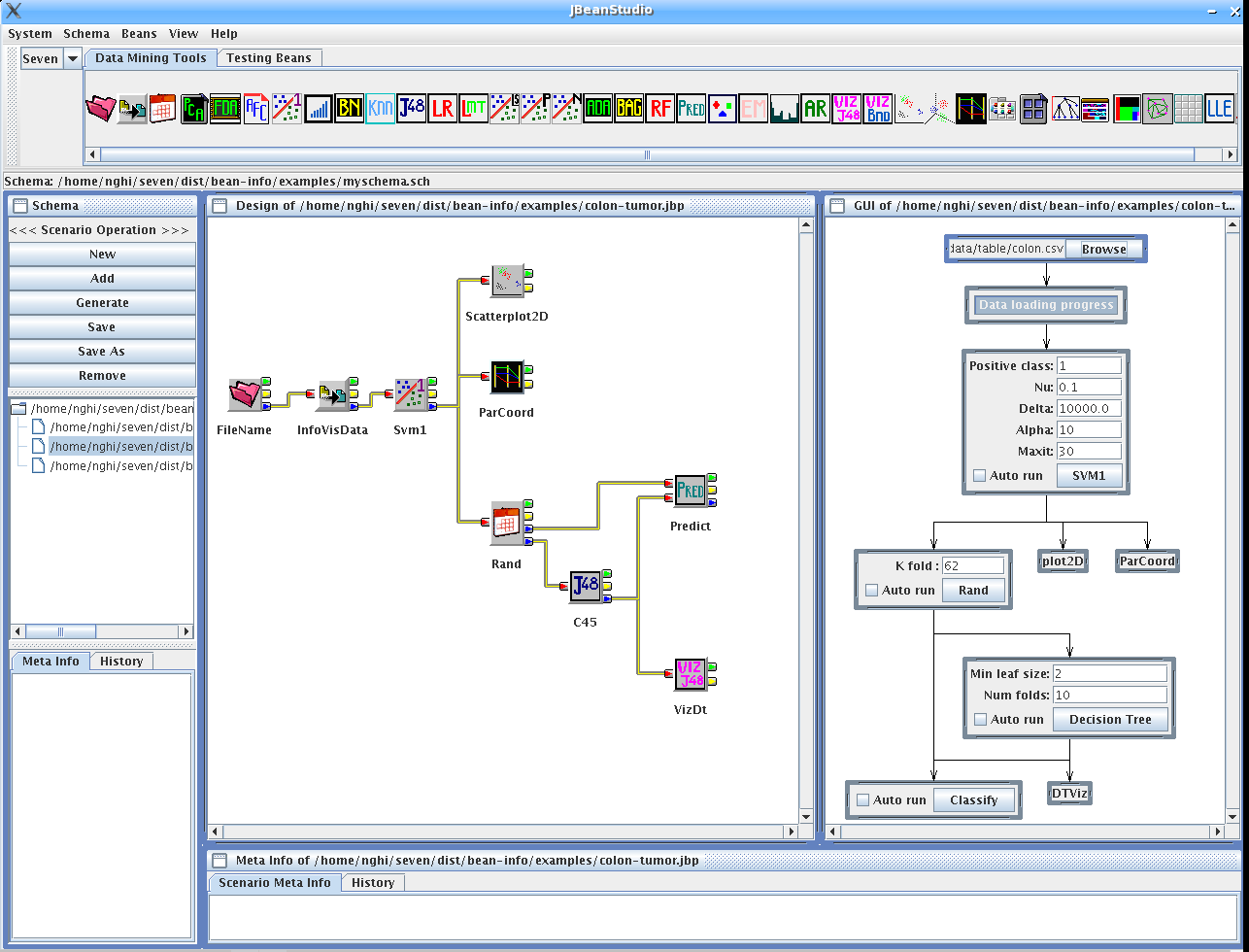

Figure 1. Visual data flow for classifying Colon tumor

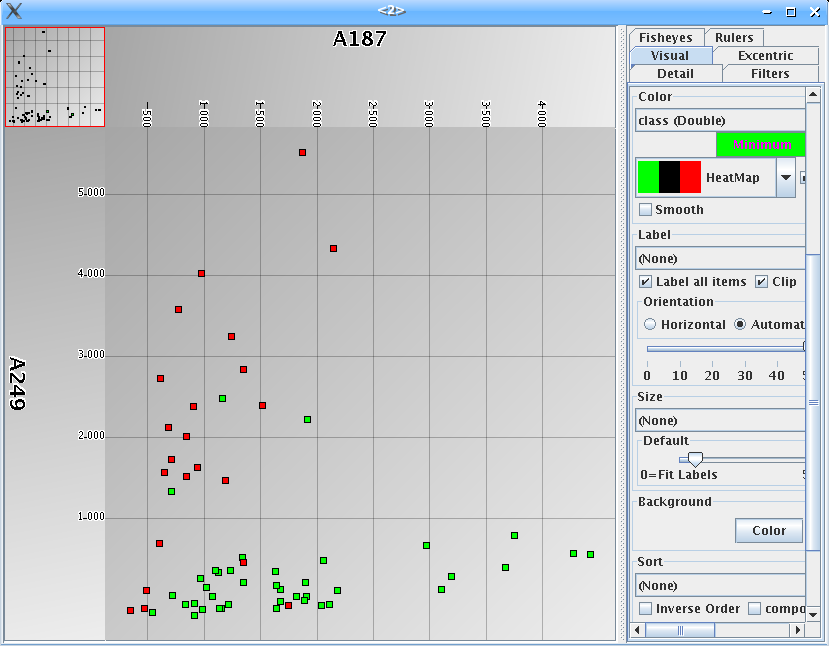

Figure 2. Visualization of Colon tumor with Scatterplot-2D

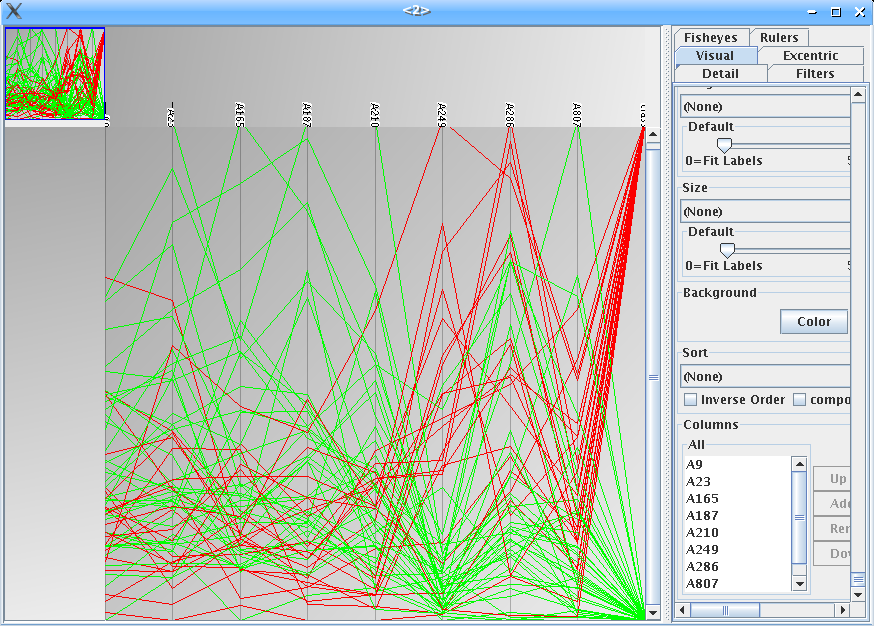

Figure 3. Visualization of Colon tumor with Parallel coordinates

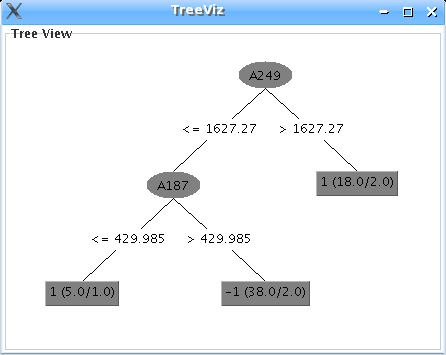

Figure 4. Decision tree of Colon tumor



2) Ovarian cancer:
 - without feature selection (15154 dims): 100% accuracy with SVM algorithms
- feature selection with SVM-1: 9 dims
- visualization with scatterplots, parallel coordinates: 100% accuracy
- classification with decision tree algorithm C4.5



3) Lung cancer:
 - without feature selection (12533 dims): 2 errors with SVM algorithms
- feature selection with SVM-1: 6 dims
- visualization with scatterplots, parallel coordinates: 5 errors
- classification with decision tree algorithm C4.5



4) Leukemia (AML-ALL):
- without feature selection (7129 dims): 2 errors with SVM algorithms
- feature selection with SVM-1: 8 dims
- visualization with scatterplots, parallel coordinates: 2 errors
- classification with decision tree algorithm C4.5
Last update june 28 2007 by Thanh-Nghi Do
